a:350-650nm
b:650-1050nm
c:1050-1580nm

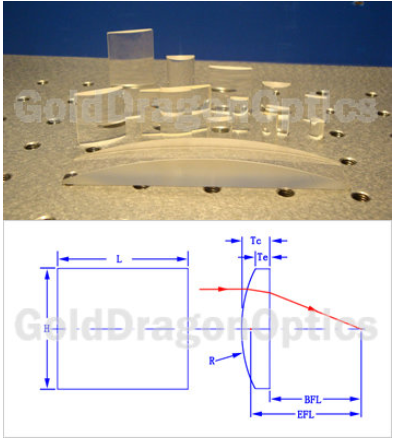

k9平凸柱面透镜 (尺寸及镀膜可按用户需求定制)单位(mm)
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1598l1s | 3.90 | 6.00 | 4.00 | 2.02 | 3.80 | 2.00 | 1.39 |
| 21j1598l2s | 3.90 | 8.00 | 4.00 | 2.02 | 3.80 | 2.00 | 1.39 |
| 21j1310l1s | 4.00 | 6.00 | 4.00 | 2.07 | 3.56 | 2.00 | 1.65 |
| 21j1310l2s | 4.00 | 8.00 | 4.00 | 2.07 | 3.56 | 2.00 | 1.65 |
| 21j1918l1s | 5.80 | 6.00 | 4.00 | 3.00 | 2.76 | 2.00 | 3.98 |
| 21j1918l2s | 5.80 | 8.00 | 4.00 | 3.00 | 2.76 | 2.00 | 3.98 |
| 21j1227l1s | 6.35 | 8.00 | 6.00 | 3.28 | 3.95 | 2.00 | 3.75 |
| 21j1227l2s | 6.35 | 12.00 | 6.00 | 3.28 | 3.95 | 2.00 | 3.75 |
| 21j1874l1s | 7.70 | 9.00 | 7.00 | 3.98 | 4.09 | 2.00 | 5.00 |
| 21j1874l2s | 7.70 | 14.00 | 7.00 | 3.98 | 4.09 | 2.00 | 5.00 |
| 21j1822l1s | 9.70 | 12.00 | 10.00 | 5.01 | 6.69 | 2.00 | 5.29 |
| 21j1822l2s | 9.70 | 20.00 | 10.00 | 5.01 | 6.69 | 2.00 | 5.29 |
| 21j1878l1s | 10.00 | 12.00 | 10.00 | 5.17 | 5.88 | 2.00 | 6.12 |
| 21j1878l2s | 10.00 | 20.00 | 10.00 | 5.17 | 5.88 | 2.00 | 6.12 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1942l1s | 12.70 | 12.00 | 10.00 | 6.56 | 4.31 | 2.00 | 9.86 |
| 21j1942l2s | 12.70 | 20.00 | 10.00 | 6.56 | 4.31 | 2.00 | 9.86 |
| 21j1805l1s | 12.70 | 15.00 | 13.00 | 6.56 | 7.67 | 2.00 | 7.64 |
| 21j1805l2s | 12.70 | 26.00 | 13.00 | 6.56 | 7.67 | 2.00 | 7.64 |
| 21j1909l1s | 13.70 | 15.00 | 13.00 | 7.08 | 6.27 | 2.00 | 9.57 |
| 21j1909l2s | 13.70 | 26.00 | 13.00 | 7.08 | 6.27 | 2.00 | 9.57 |
| 21j1636l1s | 15.00 | 12.00 | 10.00 | 7.75 | 3.82 | 2.00 | 12.48 |
| 21j1636l2s | 15.00 | 20.00 | 10.00 | 7.75 | 3.82 | 2.00 | 12.48 |
| 21j1095l1s | 19.00 | 18.00 | 16.00 | 9.82 | 6.13 | 2.00 | 14.96 |
| 21j1095l2s | 19.00 | 32.00 | 16.00 | 9.82 | 6.13 | 2.00 | 14.96 |
| 21j1155l1s | 19.70 | 18.00 | 16.00 | 10.18 | 5.88 | 2.00 | 15.82 |
| 21j1155l2s | 19.70 | 32.00 | 16.00 | 10.18 | 5.88 | 2.00 | 15.82 |
| 21j1960l1s | 20.00 | 12.00 | 10.00 | 10.34 | 3.29 | 2.00 | 17.83 |
| 21j1960l2s | 20.00 | 20.00 | 10.00 | 10.34 | 3.29 | 2.00 | 17.83 |
| 21j1328l1s | 20.00 | 17.00 | 15.00 | 10.34 | 5.22 | 2.00 | 16.56 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1328l2s | 20.00 | 30.00 | 15.00 | 10.34 | 5.22 | 2.00 | 16.56 |
| 21j1638l1s | 22.20 | 15.00 | 12.50 | 11.47 | 3.85 | 2.00 | 19.66 |
| 21j1638l2s | 22.20 | 25.00 | 12.50 | 11.47 | 3.85 | 2.00 | 19.66 |
| 21j1810l1s | 25.00 | 12.00 | 10.00 | 12.92 | 3.00 | 2.00 | 23.02 |
| 21j1810l2s | 25.00 | 20.00 | 10.00 | 12.92 | 3.00 | 2.00 | 23.02 |
| 21j1075l1s | 25.00 | 22.00 | 20.00 | 12.92 | 6.74 | 2.00 | 20.56 |
| 21j1075l2s | 25.00 | 40.00 | 20.00 | 12.92 | 6.74 | 2.00 | 20.56 |
| 21j1014l1s | 25.40 | 18.00 | 16.00 | 13.13 | 4.72 | 2.00 | 22.29 |
| 21j1014l2s | 25.40 | 32.00 | 16.00 | 13.13 | 4.72 | 2.00 | 22.29 |
| 21j1622l1s | 25.40 | 28.00 | 25.40 | 13.13 | 11.82 | 2.00 | 17.61 |
| 21j1622l2s | 25.40 | 51.00 | 25.40 | 13.13 | 11.82 | 2.00 | 17.61 |
| 21j1212l1s | 30.00 | 22.00 | 20.00 | 15.50 | 5.65 | 2.00 | 26.28 |
| 21j1212l2s | 30.00 | 40.00 | 20.00 | 15.50 | 5.65 | 2.00 | 26.28 |
| 21j1765l1s | 38.10 | 28.00 | 25.40 | 19.69 | 6.64 | 2.00 | 33.72 |
| 21j1765l2s | 38.10 | 51.00 | 25.40 | 19.69 | 6.64 | 2.00 | 33.72 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1402l1s | 40.00 | 12.00 | 10.00 | 20.67 | 2.61 | 2.00 | 38.28 |
| 21j1402l2s | 40.00 | 20.00 | 10.00 | 20.67 | 2.61 | 2.00 | 38.28 |
| 21j1125l1s | 40.00 | 22.00 | 20.00 | 20.67 | 4.57 | 2.00 | 36.99 |
| 21j1125l2s | 40.00 | 40.00 | 20.00 | 20.67 | 4.57 | 2.00 | 36.99 |
| 21j1821l1s | 50.00 | 22.00 | 20.00 | 25.84 | 4.01 | 2.00 | 47.36 |
| 21j1821l2s | 50.00 | 40.00 | 20.00 | 25.84 | 4.01 | 2.00 | 47.36 |
| 21j1695l1s | 50.00 | 32.00 | 30.00 | 25.84 | 6.80 | 2.00 | 45.52 |
| 21j1695l2s | 50.00 | 60.00 | 30.00 | 25.84 | 6.80 | 2.00 | 45.52 |
| 21j1728l1s | 50.80 | 53.00 | 50.80 | 26.25 | 21.62 | 2.00 | 36.55 |
| 21j1728l2s | 50.80 | 90.00 | 50.80 | 26.25 | 21.62 | 2.00 | 36.55 |
| 21j1430l1s | 60.00 | 32.00 | 30.00 | 31.01 | 5.87 | 2.00 | 56.13 |
| 21j1430l2s | 60.00 | 60.00 | 30.00 | 31.01 | 5.87 | 2.00 | 56.13 |
| 21j1036l1s | 60.00 | 62.00 | 60.00 | 31.01 | 25.18 | 2.00 | 43.40 |
| 21j1036l2s | 60.00 | 95.00 | 60.00 | 31.01 | 25.18 | 2.00 | 43.40 |
| 21j1993l1s | 62.90 | 53.00 | 50.80 | 32.51 | 14.22 | 2.00 | 53.52 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1993l2s | 62.90 | 95.00 | 50.80 | 32.51 | 14.22 | 2.00 | 53.52 |
| 21j1477l1s | 70.00 | 32.00 | 30.00 | 36.18 | 5.25 | 2.00 | 66.54 |
| 21j1477l2s | 70.00 | 60.00 | 30.00 | 36.18 | 5.25 | 2.00 | 66.54 |
| 21j1703l1s | 75.00 | 53.00 | 50.80 | 38.76 | 11.48 | 2.00 | 67.43 |
| 21j1703l2s | 75.00 | 95.00 | 50.80 | 38.76 | 11.48 | 2.00 | 67.43 |
| 21j1054l1s | 75.60 | 28.00 | 25.40 | 39.07 | 5.12 | 3.00 | 72.22 |
| 21j1054l2s | 75.60 | 51.00 | 25.40 | 39.07 | 5.12 | 3.00 | 72.22 |
| 21j1258l1s | 75.60 | 53.00 | 50.80 | 39.07 | 12.38 | 3.00 | 67.44 |
| 21j1258l2s | 75.60 | 95.00 | 50.80 | 39.07 | 12.38 | 3.00 | 67.44 |
| 21j1105l1s | 80.00 | 22.00 | 20.00 | 41.34 | 4.22 | 3.00 | 77.22 |
| 21j1105l2s | 80.00 | 40.00 | 20.00 | 41.34 | 4.22 | 3.00 | 77.22 |
| 21j1520l1s | 80.00 | 82.00 | 80.00 | 41.34 | 33.89 | 3.00 | 57.66 |
| 21j1520l2s | 80.00 | 145.00 | 80.00 | 41.34 | 33.89 | 3.00 | 57.66 |
| 21j1567l1s | 100.00 | 32.00 | 30.00 | 51.68 | 5.22 | 3.00 | 96.56 |
| 21j1567l2s | 100.00 | 60.00 | 30.00 | 51.68 | 5.22 | 3.00 | 96.56 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1268l1s | 100.00 | 90.00 | 100.00 | 51.68 | 41.63 | 3.00 | 72.55 |
| 21j1268l2s | 100.00 | 145.00 | 100.00 | 51.68 | 41.63 | 3.00 | 72.55 |
| 21j1640l1s | 130.00 | 32.00 | 30.00 | 67.18 | 4.69 | 3.00 | 126.91 |
| 21j1640l2s | 130.00 | 60.00 | 30.00 | 67.18 | 4.69 | 3.00 | 126.91 |
| 21j1934l1s | 150.00 | 22.00 | 20.00 | 77.52 | 3.64 | 3.00 | 147.60 |
| 21j1934l2s | 150.00 | 40.00 | 20.00 | 77.52 | 3.64 | 3.00 | 147.60 |
| 21j1629l1s | 150.00 | 32.00 | 30.00 | 77.52 | 4.46 | 3.00 | 147.06 |
| 21j1629l2s | 150.00 | 60.00 | 30.00 | 77.52 | 4.46 | 3.00 | 147.06 |
| 21j1895l1s | 150.00 | 90.00 | 100.00 | 77.52 | 21.28 | 3.00 | 135.97 |
| 21j1895l2s | 150.00 | 145.00 | 100.00 | 77.52 | 21.28 | 3.00 | 135.97 |
| 21j1653l1s | 200.00 | 32.00 | 30.00 | 103.36 | 4.09 | 3.00 | 197.30 |
| 21j1653l2s | 200.00 | 60.00 | 30.00 | 103.36 | 4.09 | 3.00 | 197.30 |
| 21j1309l1s | 200.00 | 90.00 | 100.00 | 103.36 | 15.89 | 3.00 | 189.52 |
| 21j1309l2s | 200.00 | 145.00 | 100.00 | 103.36 | 15.89 | 3.00 | 189.52 |
| 21j1277l1s | 250.00 | 22.00 | 20.00 | 129.20 | 3.38 | 3.00 | 247.77 |
| 编号(no.) | 焦距(efl) | 长(l) | 宽(h) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 21j1277l2s | 250.00 | 40.00 | 20.00 | 129.20 | 3.38 | 3.00 | 247.77 |
| 21j1267l1s | 250.00 | 62.00 | 60.00 | 129.20 | 6.53 | 3.00 | 245.69 |
| 21j1267l2s | 250.00 | 95.00 | 60.00 | 129.20 | 6.53 | 3.00 | 245.69 |
| 21j1558l1s | 300.00 | 32.00 | 30.00 | 155.04 | 3.72 | 3.00 | 297.55 |
| 21j1558l2s | 300.00 | 60.00 | 30.00 | 155.04 | 3.72 | 3.00 | 297.55 |
| 21j1996l1s | 300.00 | 62.00 | 60.00 | 155.04 | 5.93 | 3.00 | 296.09 |
| 21j1996l2s | 300.00 | 95.00 | 60.00 | 155.04 | 5.93 | 3.00 | 296.09 |
| 21j1363l1s | 400.00 | 32.00 | 30.00 | 206.72 | 3.54 | 3.00 | 397.67 |
| 21j1363l2s | 400.00 | 60.00 | 30.00 | 206.72 | 3.54 | 3.00 | 397.67 |
| 21j1144l1s | 500.00 | 32.00 | 30.00 | 258.40 | 3.43 | 3.00 | 497.74 |
| 21j1144l2s | 500.00 | 60.00 | 30.00 | 258.40 | 3.43 | 3.00 | 497.74 |
| 21j1836l1s | 700.00 | 32.00 | 30.00 | 361.76 | 3.31 | 3.00 | 697.82 |
| 21j1836l2s | 700.00 | 60.00 | 30.00 | 361.76 | 3.31 | 3.00 | 697.82 |
| 21j1516l1s | 1000.00 | 32.00 | 30.00 | 516.80 | 3.21 | 3.00 | 997.88 |
| 21j1516l2s | 1000.00 | 60.00 | 30.00 | 516.80 | 3.21 | 3.00 | 997.88 |
