a:350-650nm
b:650-1050nm
c:1050-1580nm

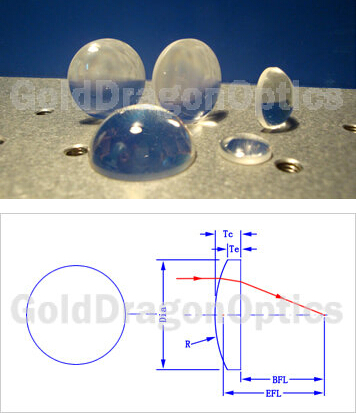

| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11a1116r | 10.00 | 6.00 | 5.15 | 2.50 | 1.50 | 8.35 |
| 11a1470r | 12.00 | 6.00 | 6.18 | 2.30 | 1.50 | 10.48 |
| 11a1222r | 15.00 | 6.00 | 7.73 | 2.10 | 1.50 | 13.61 |
| 11a1700r | 30.00 | 6.00 | 15.45 | 1.80 | 1.50 | 28.81 |
| 11a1576r | 12.00 | 9.00 | 6.18 | 3.40 | 1.50 | 9.76 |
| 11a1472r | 20.00 | 9.00 | 10.30 | 2.50 | 1.50 | 18.35 |
| 11a1540r | 15.00 | 12.70 | 7.73 | 5.10 | 1.80 | 11.63 |
| 11a1074r | 20.00 | 12.70 | 10.30 | 4.00 | 1.80 | 17.36 |
| 11a1560r | 25.00 | 12.70 | 12.88 | 3.50 | 1.80 | 22.69 |
| 11a1289r | 30.00 | 12.70 | 15.45 | 3.20 | 1.80 | 27.89 |
| 11a1304r | 40.00 | 12.70 | 20.60 | 2.80 | 1.80 | 38.15 |
| 11a1213r | 50.00 | 12.70 | 25.75 | 2.60 | 1.80 | 48.28 |
| 11a1207r | 100.00 | 12.70 | 51.51 | 2.20 | 1.80 | 98.55 |
| 11a1859r | 20.00 | 18.00 | 10.30 | 7.10 | 1.80 | 15.31 |
| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11a1270r | 25.00 | 18.00 | 12.88 | 5.50 | 1.80 | 21.37 |
| 11a1085r | 30.00 | 18.00 | 15.45 | 4.70 | 1.80 | 26.90 |
| 11a1119r | 50.00 | 18.00 | 25.75 | 3.40 | 1.80 | 47.76 |
| 11a1252r | 25.40 | 25.00 | 13.08 | 11.70 | 2.50 | 17.68 |
| 11a1255r | 50.00 | 25.00 | 25.75 | 5.30 | 2.07 | 46.50 |
| 11a1257r | 75.00 | 25.00 | 38.63 | 4.10 | 2.02 | 72.29 |
| 11a1251r | 100.00 | 25.00 | 51.51 | 3.60 | 2.06 | 97.62 |
| 11a1253r | 200.00 | 25.00 | 103.02 | 2.80 | 2.04 | 198.15 |
| 11a1951r | 25.40 | 25.40 | 13.08 | 11.70 | 1.80 | 17.68 |
| 11a1805r | 30.00 | 25.40 | 15.45 | 8.60 | 2.00 | 24.32 |
| 11a1027r | 35.00 | 25.40 | 18.03 | 7.20 | 2.00 | 30.25 |
| 11a1422r | 40.00 | 25.40 | 20.60 | 6.40 | 2.00 | 35.78 |
| 11a1131r | 50.00 | 25.40 | 25.75 | 5.30 | 2.00 | 46.50 |
| 11a1134r | 60.00 | 25.40 | 30.91 | 4.70 | 2.00 | 56.90 |
| 11a1608r | 75.00 | 25.40 | 38.63 | 4.10 | 2.00 | 72.29 |
| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11a1509r | 100.00 | 25.40 | 51.51 | 3.60 | 2.00 | 97.62 |
| 11a1986r | 125.00 | 25.40 | 64.39 | 3.30 | 2.00 | 122.82 |
| 11a1433r | 150.00 | 25.40 | 77.26 | 3.10 | 2.00 | 147.95 |
| 11a1229r | 175.00 | 25.40 | 90.14 | 2.90 | 2.00 | 173.09 |
| 11a1708r | 200.00 | 25.40 | 103.02 | 2.80 | 2.00 | 198.15 |
| 11a1461r | 250.00 | 25.40 | 128.77 | 2.60 | 2.00 | 248.28 |
| 11a1484r | 300.00 | 25.40 | 154.53 | 2.50 | 2.00 | 298.35 |
| 11a1172r | 400.00 | 25.40 | 206.04 | 2.40 | 2.00 | 398.42 |
| 11a1908r | 500.00 | 25.40 | 257.55 | 2.30 | 2.00 | 498.48 |
| 11a1978r | 750.00 | 25.40 | 386.32 | 2.20 | 2.00 | 748.55 |
| 11a1464r | 1000.00 | 25.40 | 515.09 | 2.20 | 2.00 | 998.55 |
| 11a1274r | 40.00 | 30.00 | 20.60 | 9.00 | 2.50 | 34.06 |
| 11a1102r | 50.00 | 30.00 | 25.75 | 7.30 | 2.50 | 45.18 |
| 11a1765r | 75.00 | 30.00 | 38.63 | 5.50 | 2.50 | 71.37 |
| 11a1031r | 100.00 | 30.00 | 51.51 | 4.70 | 2.50 | 96.90 |
| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11a1911r | 120.00 | 30.00 | 61.81 | 4.30 | 2.50 | 117.16 |
| 11a1907r | 150.00 | 30.00 | 77.26 | 3.10 | 1.60 | 147.95 |
| 11a1541r | 200.00 | 30.00 | 103.02 | 2.80 | 1.70 | 198.15 |
| 11a1832r | 250.00 | 30.00 | 128.77 | 2.60 | 1.70 | 248.28 |
| 11a1419r | 300.00 | 30.00 | 154.53 | 2.50 | 1.80 | 298.35 |
| 11a1237r | 500.00 | 30.00 | 257.55 | 2.30 | 1.80 | 498.48 |
| 11a1401r | 60.00 | 50.80 | 30.91 | 16.30 | 3.00 | 49.24 |
| 11a1145r | 75.00 | 50.80 | 38.63 | 12.50 | 3.00 | 66.75 |
| 11a1050r | 100.00 | 50.80 | 51.51 | 9.70 | 3.00 | 93.60 |
| 11a1384r | 125.00 | 50.80 | 64.39 | 8.20 | 3.00 | 119.59 |
| 11a1417r | 150.00 | 50.80 | 77.26 | 7.30 | 3.00 | 145.18 |
| 11a1399r | 175.00 | 50.80 | 90.14 | 6.70 | 3.00 | 170.58 |
| 11a1979r | 200.00 | 50.80 | 103.02 | 6.20 | 3.00 | 195.91 |
| 11a1301r | 250.00 | 50.80 | 128.77 | 5.50 | 3.00 | 246.37 |
| 11a1256r | 300.00 | 50.80 | 154.53 | 5.10 | 3.00 | 296.63 |
| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11a1725r | 400.00 | 50.80 | 206.04 | 4.60 | 3.00 | 396.96 |
| 11a1380r | 500.00 | 50.80 | 257.55 | 4.30 | 3.00 | 497.16 |
| 11a1727r | 750.00 | 50.80 | 386.32 | 3.80 | 3.00 | 747.49 |
| 11a1779r | 1000.00 | 50.80 | 515.09 | 3.60 | 3.00 | 997.62 |
| 11a1740r | 85.00 | 75.00 | 43.78 | 24.20 | 3.00 | 69.03 |
| 11a1238r | 100.00 | 75.00 | 51.51 | 19.20 | 3.00 | 87.33 |
| 11a1002r | 150.00 | 75.00 | 77.26 | 12.70 | 3.00 | 141.62 |
| 11a1353r | 200.00 | 75.00 | 103.02 | 10.10 | 3.00 | 193.33 |
