a:350-650nm
b:650-1050nm
c:1050-1580nm

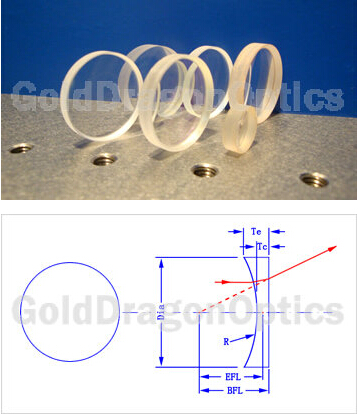

| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11c1035r | -18.00 | 6.00 | -9.27 | 2.00 | 2.50 | -19.32 |
| 11c1975r | -24.00 | 6.00 | -12.36 | 2.00 | 2.40 | -25.32 |
| 11c1906r | -27.00 | 9.00 | -13.91 | 2.00 | 2.70 | -28.32 |
| 11c1054r | -25.00 | 12.70 | -12.88 | 3.00 | 4.70 | -26.98 |
| 11c1060r | -30.00 | 12.70 | -15.45 | 3.00 | 4.40 | -31.98 |
| 11c1439r | -50.00 | 12.70 | -25.75 | 3.50 | 4.30 | -52.31 |
| 11c1259r | -50.00 | 25.00 | -25.75 | 3.50 | 6.70 | -52.31 |
| 11c1258r | -75.00 | 25.00 | -38.63 | 3.50 | 5.60 | -77.31 |
| 11c1254r | -100.00 | 25.00 | -51.51 | 4.00 | 5.50 | -102.64 |
| 11c1715r | -50.00 | 25.40 | -25.75 | 3.50 | 6.90 | -52.31 |
| 11c1582r | -75.00 | 25.40 | -38.63 | 3.50 | 5.60 | -77.31 |
| 11c1120r | -100.00 | 25.40 | -51.51 | 4.00 | 5.60 | -102.64 |
| 11c1315r | -75.00 | 50.80 | -38.63 | 3.50 | 13.00 | -77.31 |
| 11c1093r | -100.00 | 50.80 | -51.51 | 4.00 | 10.70 | -102.64 |
| 编号(no.) | 焦距(efl) | 直径(dia) | 半径(r) | 中心厚(tc) | 边厚(te) | 后焦距(bfl) |
| 11c1611r | -150.00 | 50.80 | -77.26 | 4.00 | 8.30 | -152.64 |
