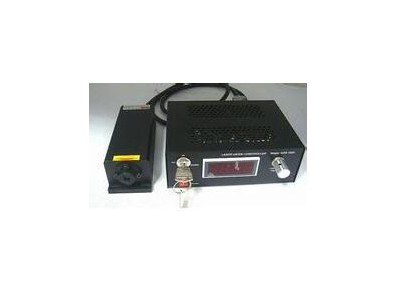

lldzs380-400mw
central wavelength (nm)波长380±10
operating mode工作方式cw
output power (mw)输出功率>1,50, … ,400
power stability (rms, over 4 hours)稳定性<3%, <2%, <1%, <0.5%
transverse mode光斑模式multimode
noise of amplitude(rms,20hz~20mhz)噪声<1%
beam diameter at the aperture (1/e2,mm)光斑尺寸~3.0×3.5
beam divergence, full angle (mrad)发散角~2.0×0.5
polarization ratio偏振比>50:1 (>100:1, optional)
horizontal±5 degree (vertical optional)
warm-up time (minutes)预热时间<5
beam height from base plate (mm)中心高24.8
operating temperature (℃)工作温度10~35
power supply供电220v数显可调
modulation optional调制ttl on/off, 1hz- 1khz, 1khz- 10khz
expected lifetime (hours)寿命10000
warranty保修1 year
