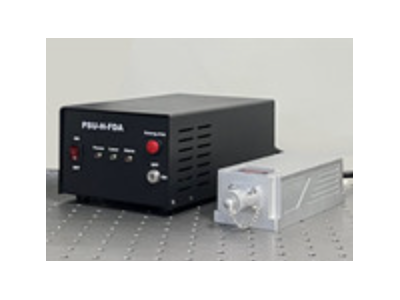

lldzs360-100mw
wavelength (nm)波长360± 1
operating mode工作模式cw
output power (mw)功率1- 100
power stability (rms, over 4 hours)功率稳定性<2%, < 1%, <0.5%
spectral line width (nm)线宽<0. 1, <0.003
transverse mode光斑模式near tem00
noise of amplitude (rms, 1hz~20mhz)性噪比< 1%
m2 factor光束质量< 1.5
beam diameter at the aperture ( 1/e2, mm)光斑< 1.2
beam divergence, full angle (mrad)发散角< 1.0
polarization ratio偏振比>50:1, horizontal (vertical optional)
warm-up time (minutes)上升时间< 10
pointing stability after warm-up (mrad)光斑指向稳定性<0.05
beam height from base plate (mm)中心高27.4
max. laser head base plate temp (°c)工作温度50
operating temperature (°c)工作温度10-35
power supply (90-264vac)供电220v可调
expected lifetime (hours)寿命10000
warranty保修1 year
